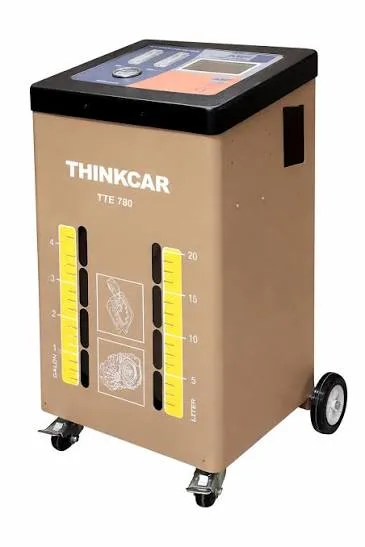

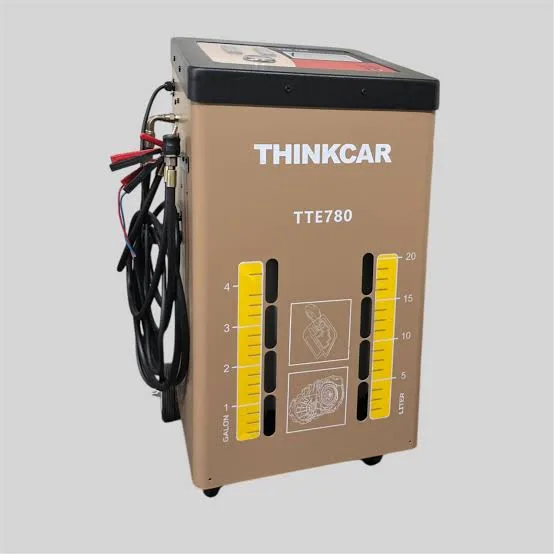

THINKCAR TTE 780 Automatic Gearbox Oil Exchanger

The THINKCAR TTE 780 is a professional automatic transmission oil exchange, cleaning and refilling machine developed for automotive workshops, transmission specialists and vehicle service centres.

It helps technicians remove used automatic transmission fluid and replace it with new oil while maintaining an accurate fluid balance. Its automated operation, vehicle-guided menus and high-precision weighing system make transmission servicing faster, cleaner and more consistent.

Intelligent and Fully Automated Operation

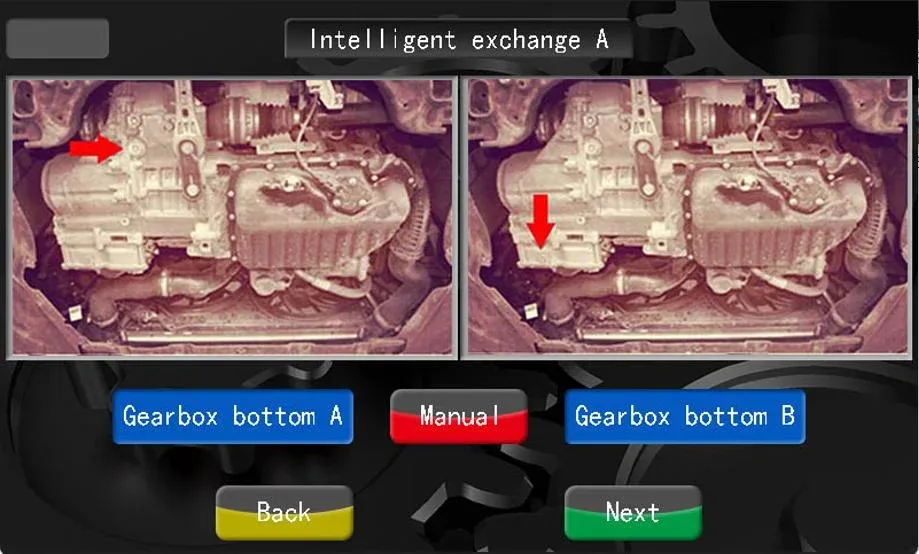

The TTE 780 features a large 7-inch colour touchscreen with a simple and intuitive operating interface. Technicians can select the appropriate vehicle brand and model, allowing the machine to guide them through the required transmission service procedure.

This automated process reduces manual work and helps produce consistent workshop results.

High-Precision Equal Oil Exchange

The TTE 780 uses an accurate electronic weighing system to monitor the quantity of old and new transmission fluid throughout the service.

With an equal exchange accuracy of ±0.01L, the machine helps ensure that the quantity of new oil supplied closely matches the amount of old fluid removed.

Accurate fluid replacement helps prevent underfilling and overfilling while supporting smoother and more reliable gearbox operation.

Dual 20-Litre Oil Tanks

These separate tanks help prevent contamination between old and new transmission fluid. Their generous capacity makes the TTE 780 suitable for busy workshops and regular automatic transmission servicing.

Automatic Transmission Cycle Cleaning

Before replacing the transmission fluid, technicians can use the cycle-cleaning function to circulate cleaning solution through the transmission system.

This process can help remove contaminated fluid, deposits and suspended impurities before new oil is introduced. Proper transmission cleaning may support improved oil circulation and smoother gear changes when carried out according to the vehicle manufacturer’s service instructions.

5-Micron High-Precision Filtration

A built-in 5μm filtration system captures fine contaminants during the cleaning and oil-exchange process.

High-precision filtration helps keep impurities from circulating through the transmission system and supports a cleaner, more effective fluid replacement procedure.

Automatic Oil Recovery and Refilling

This integrated workflow helps reduce service time and limits unnecessary fluid handling.

Built-In Service Report Printer

The integrated micro printer allows technicians to print a service record after completing the oil-exchange procedure.

Printed service information can be provided to the customer or retained by the workshop for maintenance records.

Mobile, Workshop-Ready Construction

The TTE 780 is built for daily professional workshop use. Its robust cabinet protects the internal components, while durable wheels allow technicians to move the machine conveniently between service bays.

With an operating noise level below 70 dB, it provides relatively quiet operation in a busy workshop environment.

Automatic Oil Exchange

Automatically removes old transmission fluid and replaces it with new oil while monitoring the exchanged quantities.

Cycle Cleaning

Circulates fluid or an appropriate cleaning solution through the transmission system before the final oil exchange.

Used Oil Recovery

Recovers old automatic transmission fluid into the dedicated used-oil tank.

New Oil Filling

Fills the transmission with the required quantity of compatible new fluid.

Detergent Circulation

Circulates a suitable cleaning agent through the system as part of the cleaning procedure.

Oil Tank Emptying

Allows the operator to empty the new-oil or used-oil tank when required.

Service Record Printing

Prints a service record using the machine’s integrated micro printer.

Why Use an Automatic Transmission Oil Exchange Machine?

A conventional transmission-fluid drain may leave a significant amount of old oil inside the torque converter, oil cooler, pipes and internal transmission passages.

An automatic oil exchange machine is designed to replace a greater proportion of the used fluid while maintaining a controlled balance between recovered and replacement oil. This provides a more complete and efficient service than a basic drain-and-refill procedure.

Important Compatibility Notice

Transmission fluid type, connection method, oil quantity and service procedure vary according to vehicle make, model, year and gearbox type.

Always use the transmission fluid specified by the vehicle manufacturer. Confirm vehicle compatibility, required adapters and the correct service procedure before operation. Transmission servicing should be performed by a trained technician.
