THINKCAR GDI 300 EFI / GDI / Piezo Injector Cleaner & Tester
Advanced injector cleaner and tester with EFI (12V), GDI (65V) and Piezo (140V) modes and six-injector simultaneous testing.
Highlights
- EFI 12V, GDI 65V and Piezo 140V working modes
- High-power ultrasonic cleaning of multiple injectors at once
- Resistance test on up to 6 injectors simultaneously
- Sealing, uniformity/atomisation and injection-volume tests
- Preset programmes run tests automatically
- Non-disassembly (on-car) cleaning connectors included
Overview

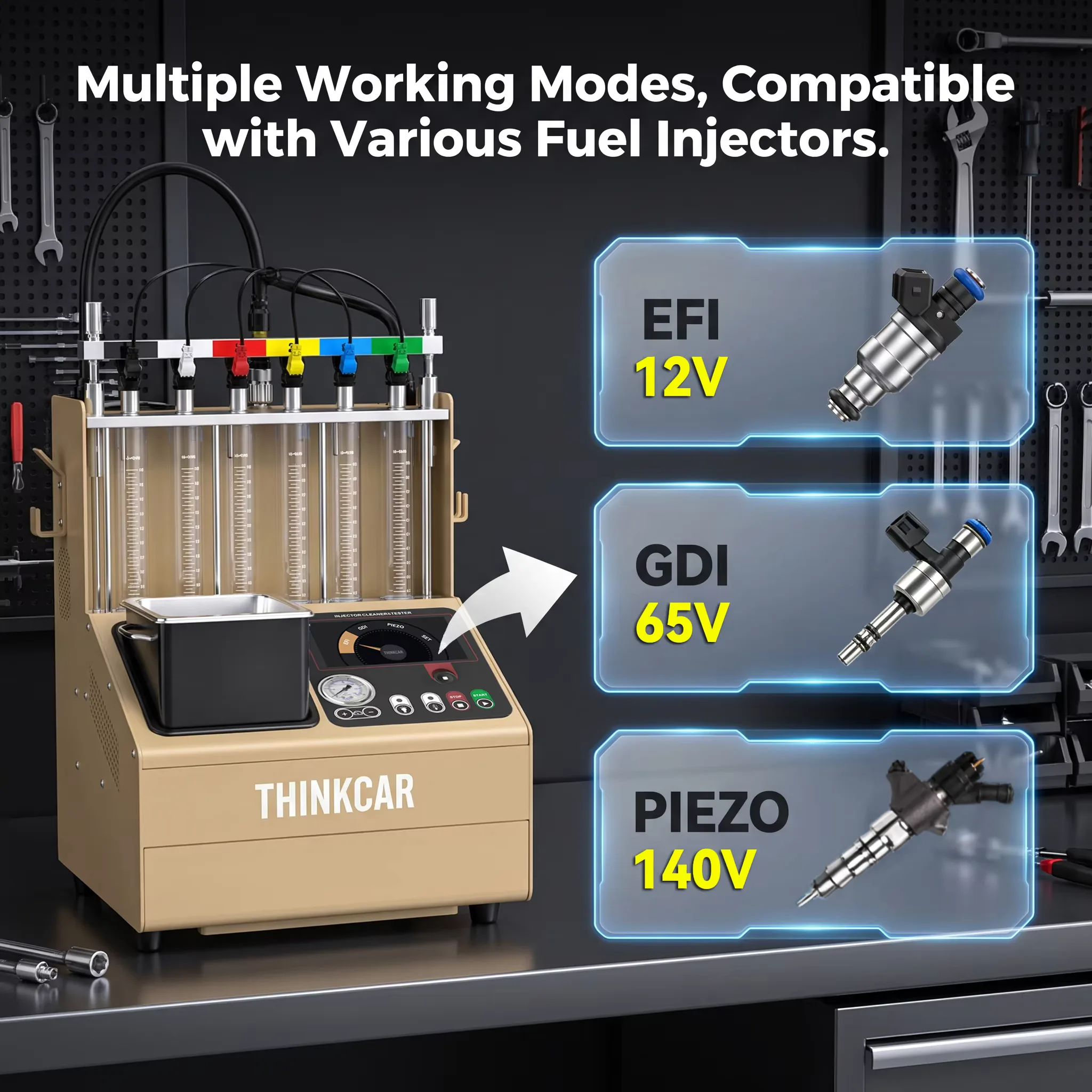

You can select the working modes of EFI (12V), GDI (65V) or PIEZO (140V) according to the type of fuel injector, and perform cleaning and testing on different types of fuel injectors.

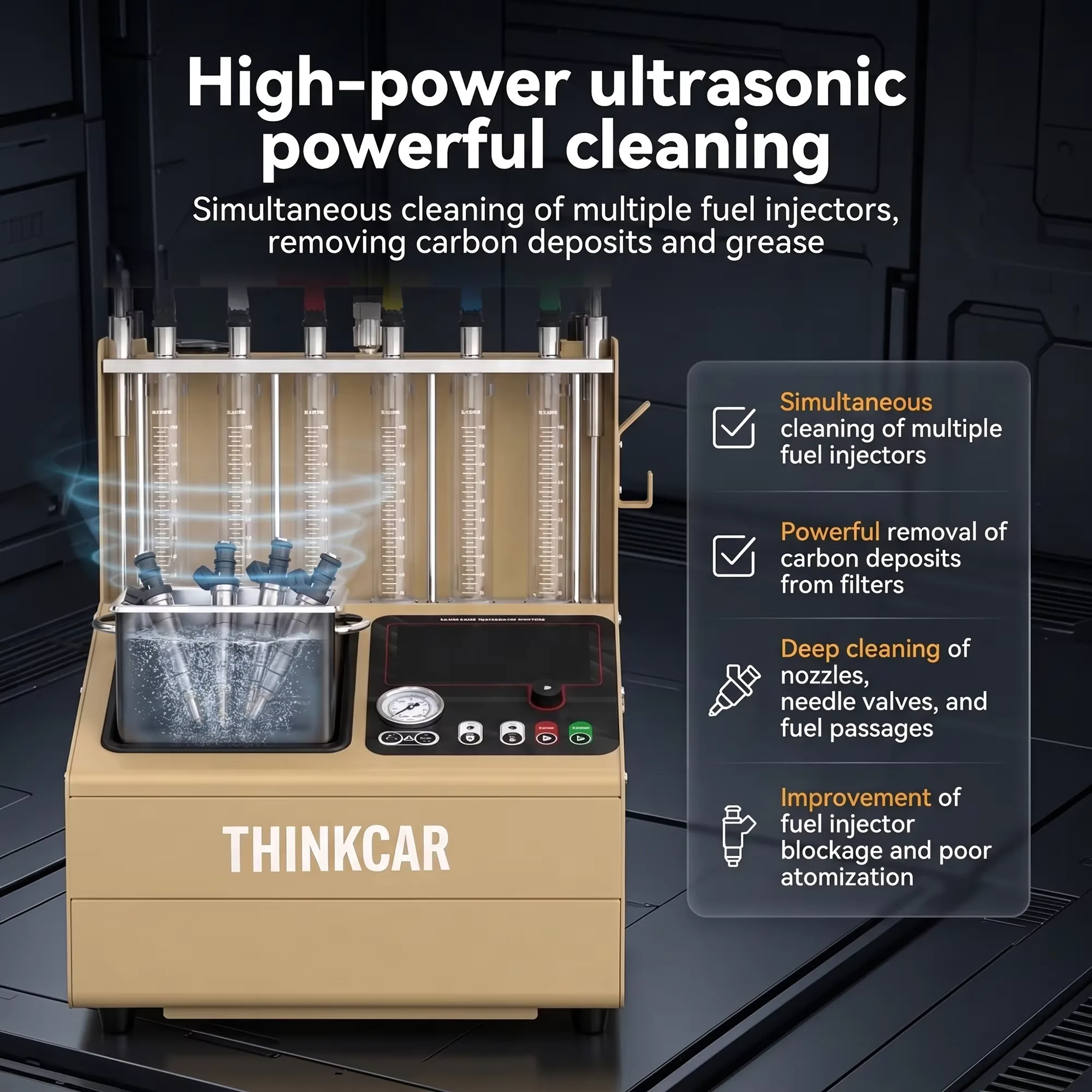

The high-power ultrasonic cleaning device can simultaneously perform ultrasonic cleaning on multiple fuel injectors, effectively removing the deposits on the fuel injectors.

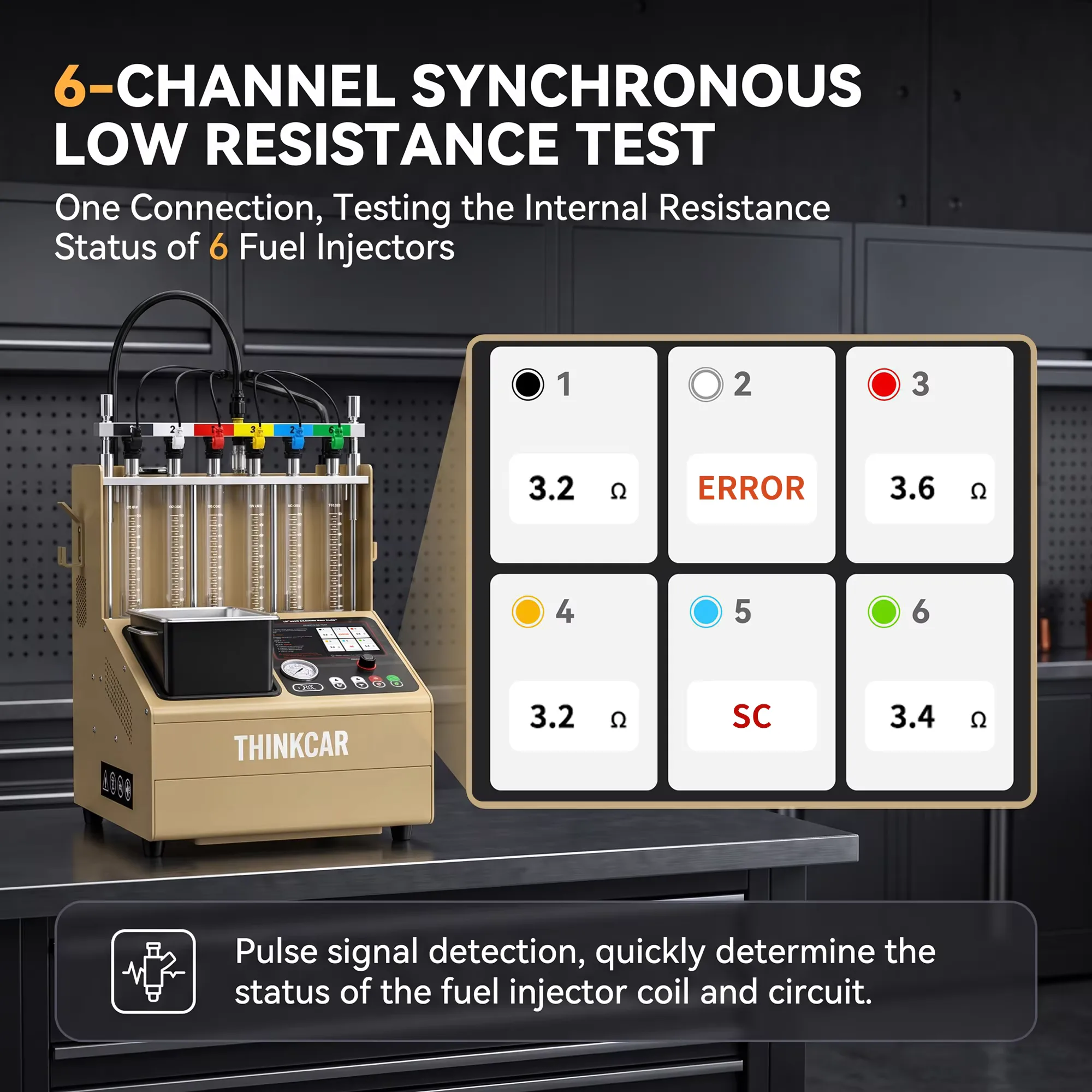

Using the pulse signal line, the internal resistance of up to six fuel injectors can be tested simultaneously to determine whether the fuel injector circuit is functioning properly.
By simulating various operating conditions of the engine, conducting sealing tests, uniformity/fogging tests, and fuel injection volume tests, a comprehensive evaluation of the performance of the fuel injectors is carried out.
The supporting program can preset parameters in advance and automatically conduct various tests on the fuel injectors under specific parameters.
Equipped with a variety of non-disassembly cleaning connectors, it supports multiple vehicle models for non-disassembly cleaning.
Specifications
- Injector types
- EFI (12V), GDI (65V), Piezo (140V)
- Simultaneous resistance test
- Up to 6 injectors
- Tests
- Sealing, uniformity / atomisation, injection volume
- Cleaning
- Ultrasonic + non-disassembly connectors
Warranty & support
Every unit comes with a 1-year official warranty from the official THINKCAR partner in Pakistan. Setup help, software updates and after-sales service are available at all our branches.
